High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications
High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications

High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications

Productdetails:
Plaats van herkomst: China
Merknaam: Sanxin
Modelnummer: SX1279
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 2
Levertijd: 5-25 dagen
Betalingscondities: T/T,L/C,Western Union
Contact nu
  • Gedetailleerde informatie
  • Productomschrijving

Gedetailleerde informatie
Type: Dynamisch en statisch Voordeel: Hoge kracht
Maat: Custom gemaakt Draag weerstand: Uitstekend
slijtage: Minder dan 0,1 mm³/MJ Chemische weerstand: Resistent tegen de meeste zuren en alkalis
Producttype: Industrieel materiaal Hardheid: 9 mohs
Bewerking: Verwerking van wolfraamcarbide Elektrische geleidbaarheid: 0,13% GBCS
Ductiliteit: Goede ductiliteit en bewerkbaarheid Chemische traagheid: Hoog
Markeren:

92 HRA Hardness Tungsten Carbide Cutters

,

High Precision Cutting Non-magnetic Tungsten Carbide Cutters

,

WC-8Ni Non-magnetic Hard Alloy Precision Shearing Components

Productomschrijving

Precision Shearing Components For Medical And Electronic Applications With A Cutting Edge Hardness Of 92 HRA
The non-magnetic tungsten steel scissor parts, specially developed for high-precision cutting scenarios such as medical surgery and electronic manufacturing, adopt a special WC-Ni non-magnetic formula and combine it with nano-level blade edge processing technology to achieve zero magnetic interference, ultra-sharpness and long life precision cutting performance in sensitive working environments, completely solving the problems of magnetic adsorption and rapid passivation of traditional scissor parts.
Material Science
  • Material Formulation: WC-8Ni Non-magnetic Hard Alloy
Magnetic Properties
  • Permeability: <1.002
  • Remanence: <0.03 mT
  • Completely free of magnetic interference
Mechanical Properties
  • Edge Hardness: 92 HRA
  • Bending Strength: 2800 MPa
  • Fracture Toughness: 12 MPa*m¹/²
  • Wear Resistance: 50 times that of conventional steel
Machining Details
Edge Treatment
  • Nanoscale diamond grinding
  • Laser precision sharpening
  • Electrolytic polishing for deburring
Precision Specifications
  • Edge straightness: ≤0.003mm/50mm
  • Edge angle accuracy: ±0.1°
  • Surface roughness: Ra 0.1-0.2μm
  • Edge passivation radius: R0.01mm
Performance Analysis
Performance Indicators Non-magnetic Tungsten Carbide Cutters Core Advantages
Magnetic Permeability <1.002 Completely eliminates magnetic interference
Blade Hardness 92 HRA 8 times better wear resistance
Lifespan 500,000 cycles 5 times longer lifespan
Blade Edge Retention Excellent Maintains sharpness for a long time
Corrosion Resistance Excellent Adaptable to harsh environments
Customized Services
  • Customized cutting edge angles
  • Rapid response to non-standard sizes
  • Special surface treatments
  • Small batch trial production services

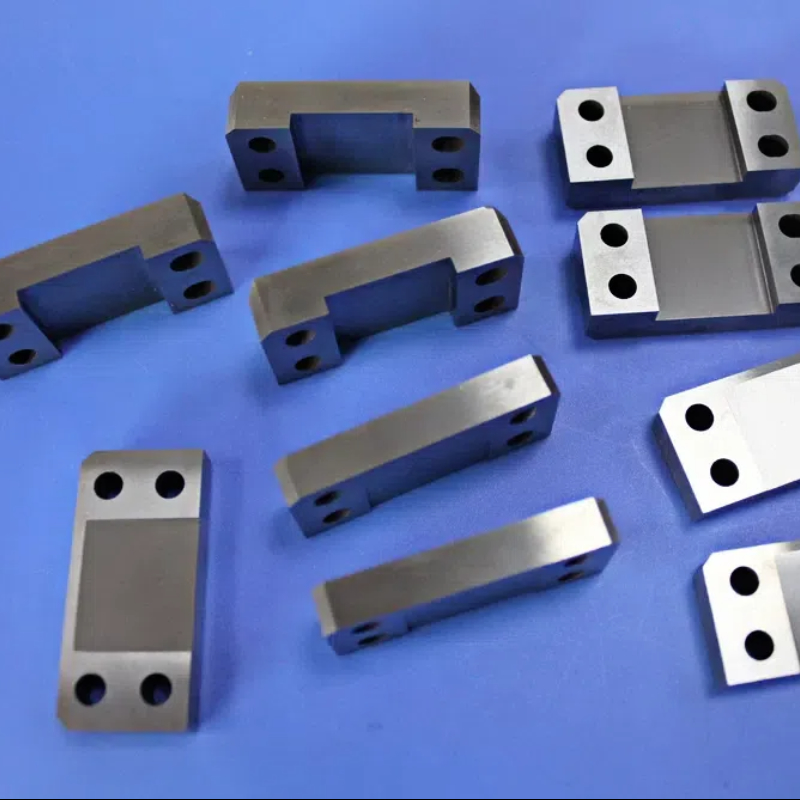

High Precision Cutting Non-magnetic Tungsten Carbide Cutters with 92 HRA Hardness for Medical and Electronic Applications 0
